At AMROCK, we manufacture a wide range of FRP Grating in India with variety of resins, colours, depth, surface and mesh configurations.

What is FRP Grating

FRP Grating (also known as Fiberglass Reinforced Plastic Grating or Fiberglass Grating) is a composite material manufactured by combining a matrix of resin and fiberglass. FRP Grating does not corrode like steel grating and is therefore used in corrosive environments to reduce maintenance costs.

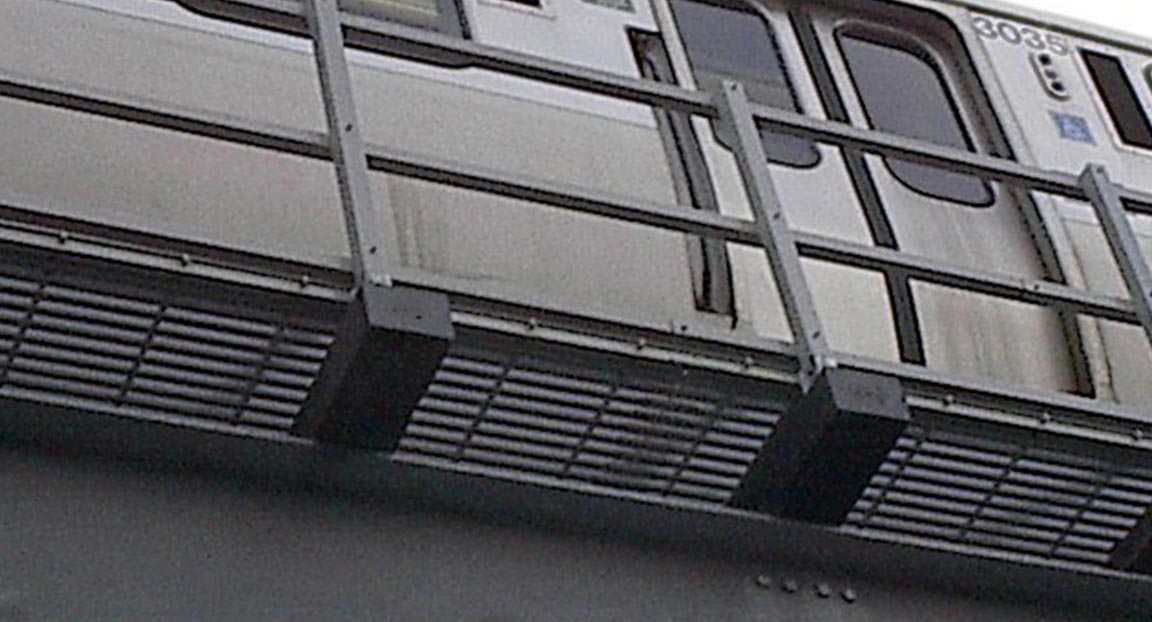

Application areas

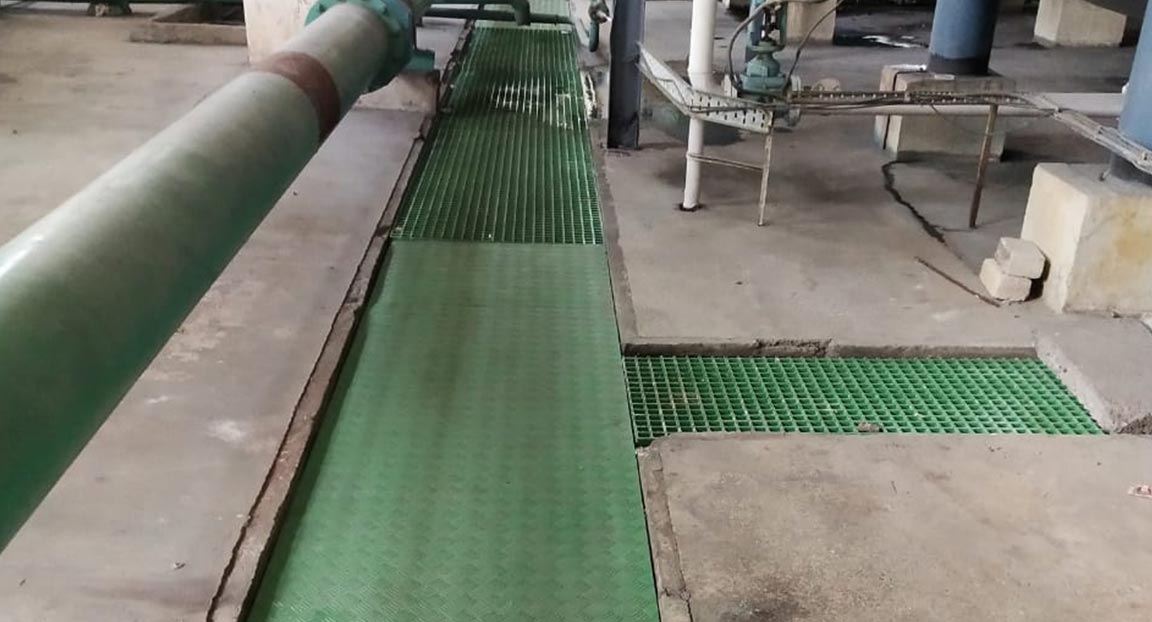

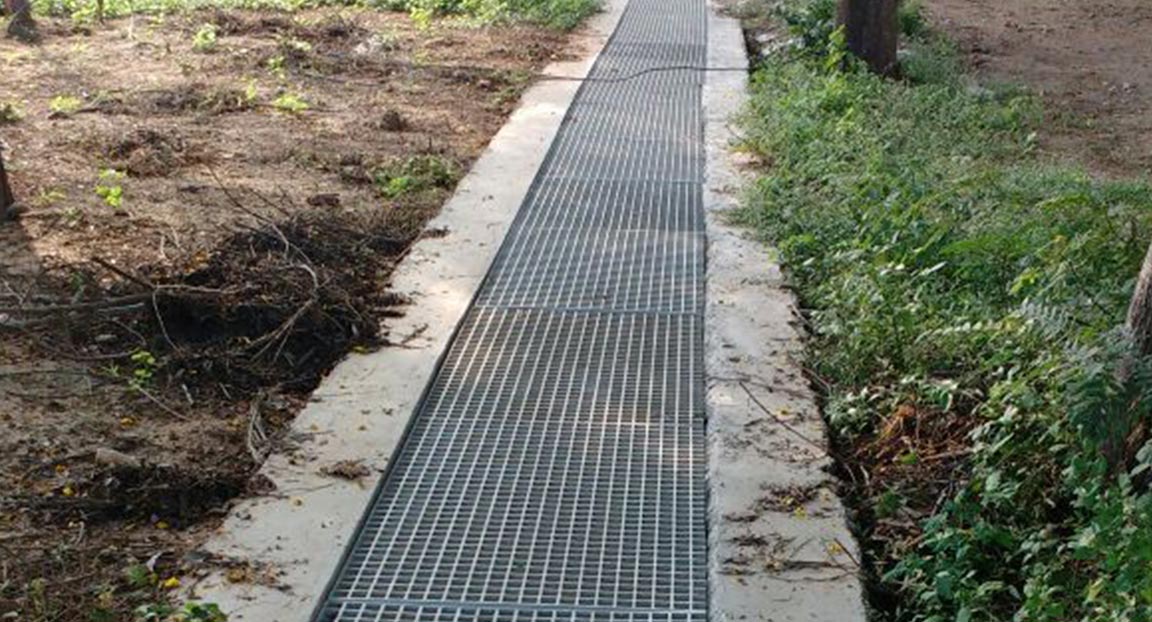

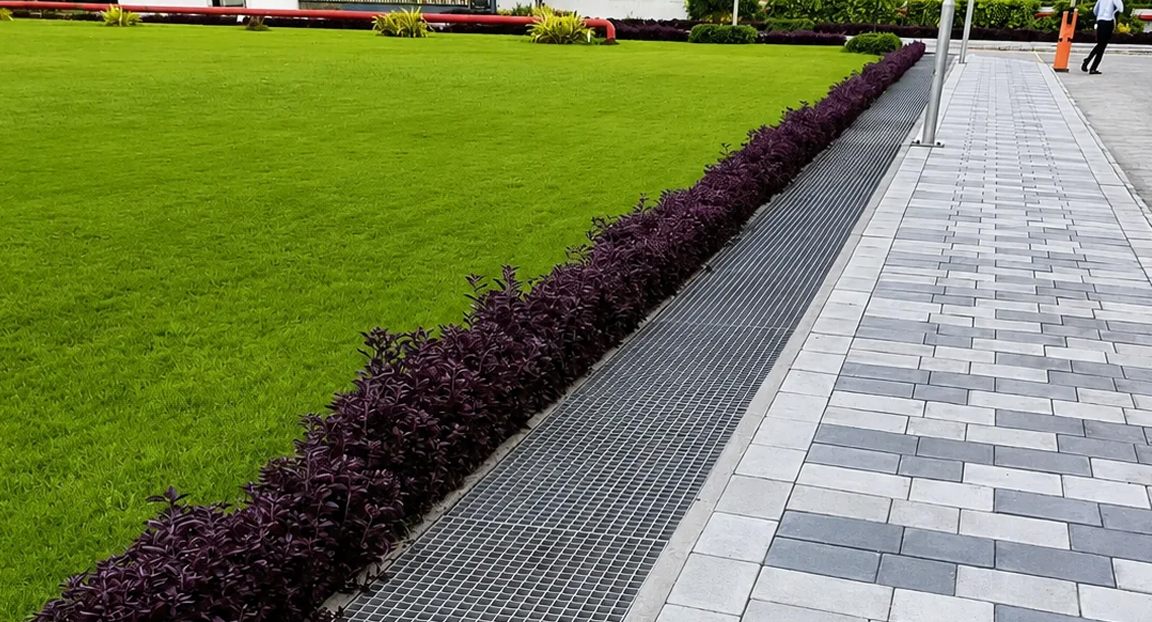

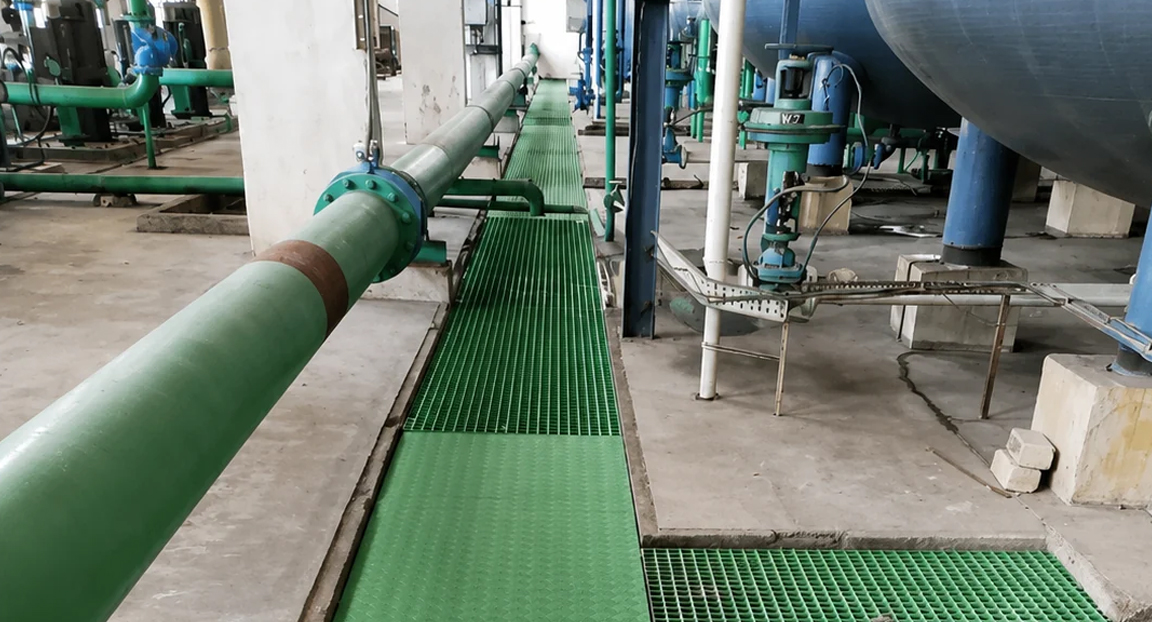

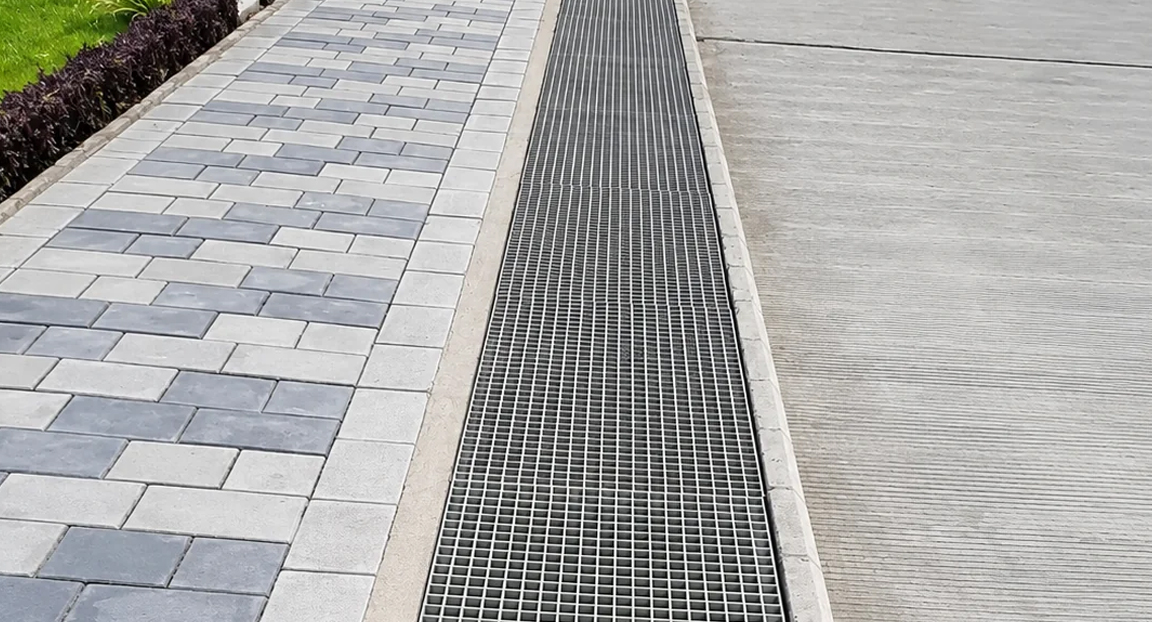

  • Trench Cover
  • Platforms
  • Stair Treads

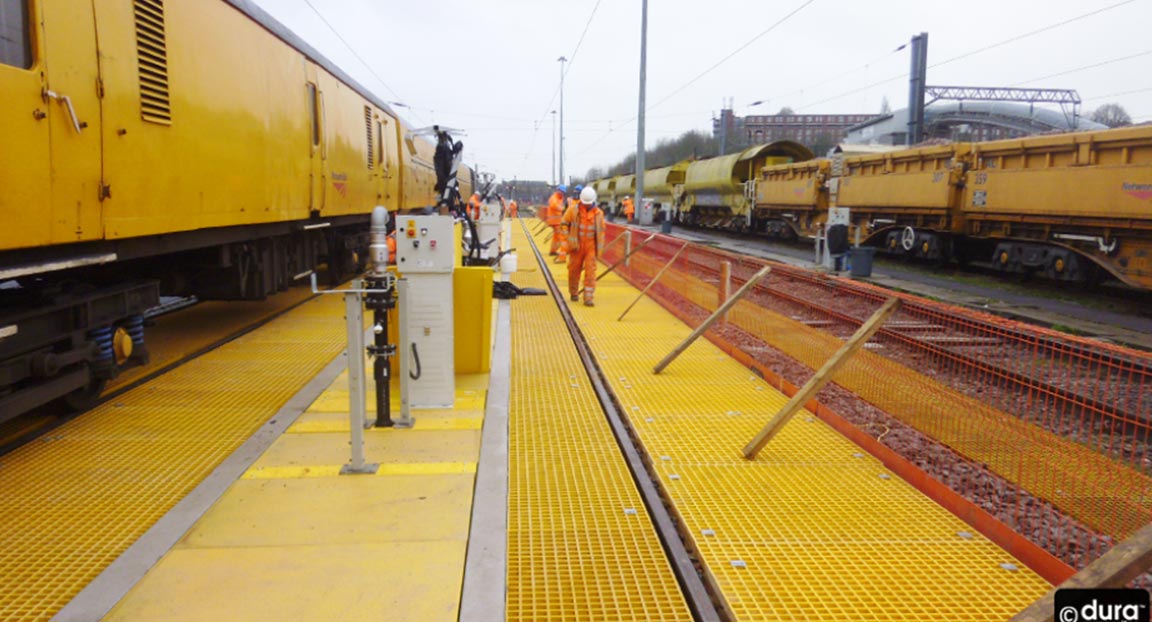

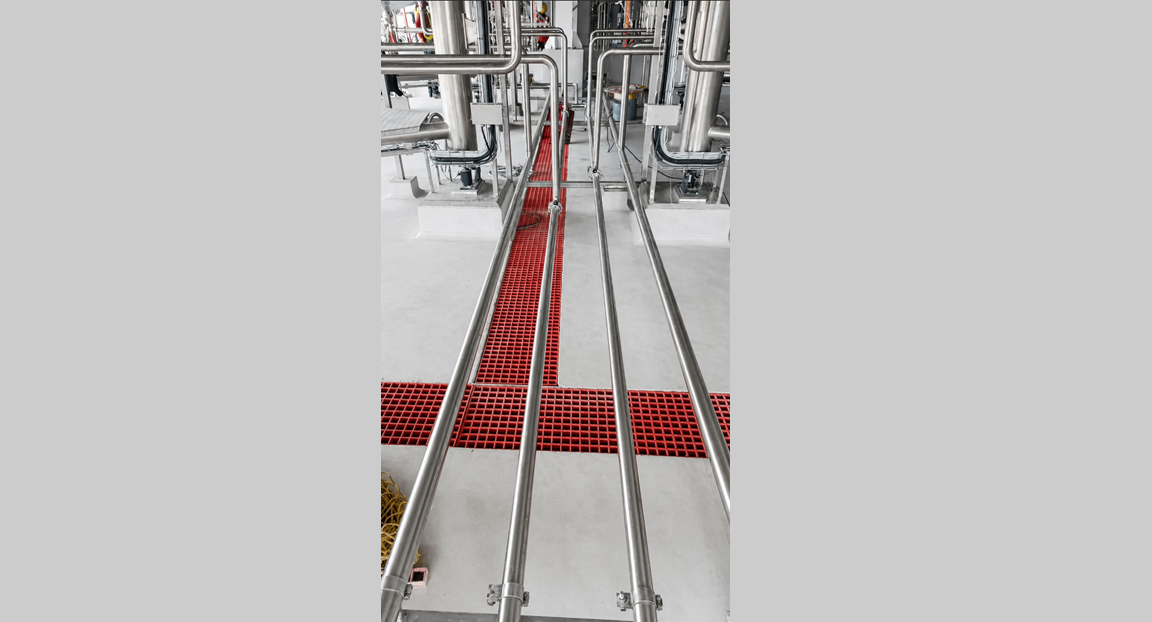

  • Walkways/Walk Paths
  • Cooling Tower Area
  • WTP Area

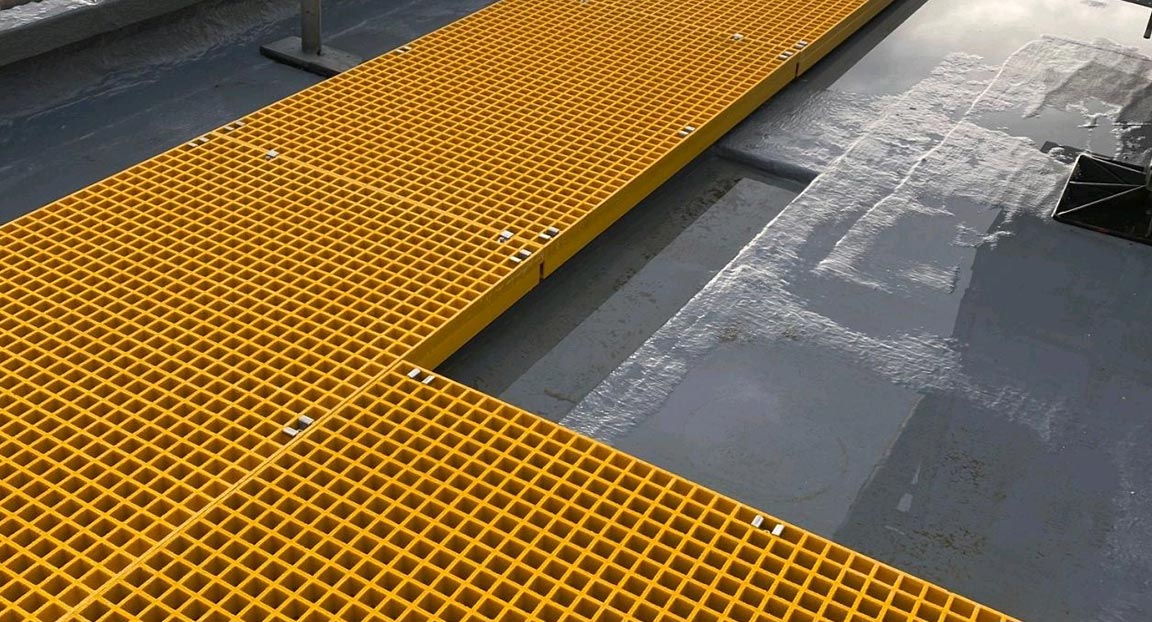

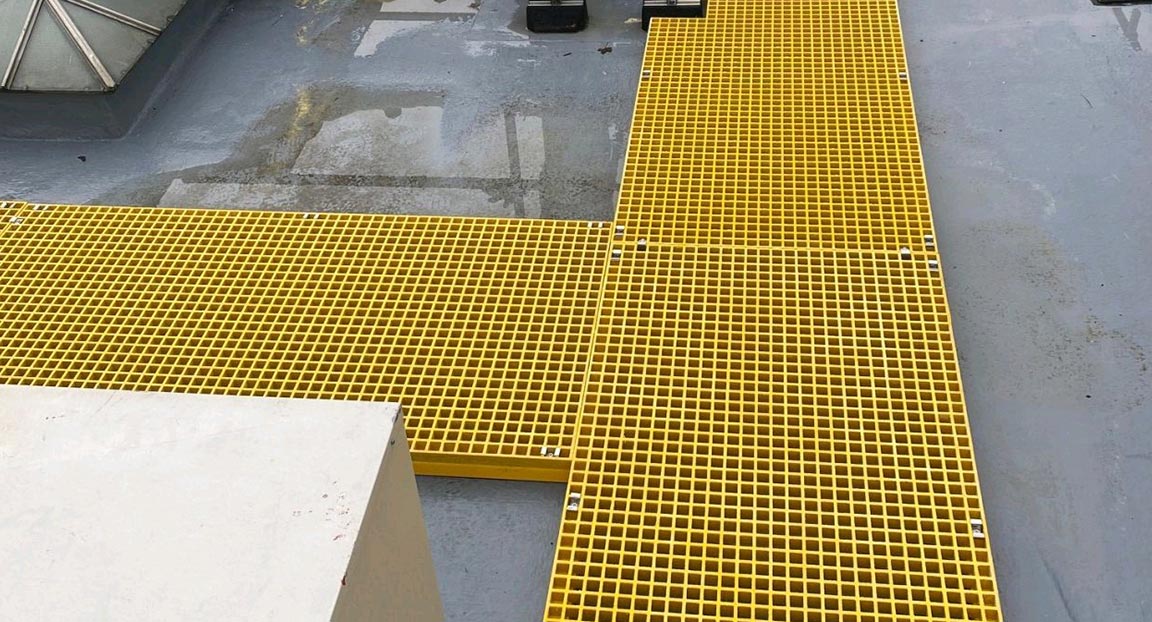

  • Rooftop Walkways

Industries we serve

  • Refineries
  • Chemical Industry
  • Power Plants
  • Oil & Gas Industry
  • Solar Industry
  • Construction Industry
  • Marine & Shipping
  • Offshore Platforms
  • Cooling Towers
  • Effluent Treatment Plants
  • Architectural Industry



  • High load-bearing capacity
  • Durable in the harshest environment
  • Easy to assemble
  • Easy to install and maintain/repair
  • Suitable for ventilation and natural lighting.

Resin

Resin Type Resin Base Description Flame spread rating  ASTM E84
Type IFR Isopthalic Polyester Industrial Grade Corrosion
Resistance and Fire Retardant
Class 1, 25 or less
Type I Isopthalic Polyester Industrial Grade Corrosion
Resistance in Acidic Environment
Non Fire Retardant
Type V Vinyl Ester Superior Corrosion Resistance &
Fire Retardant
Class 1, 25 or less

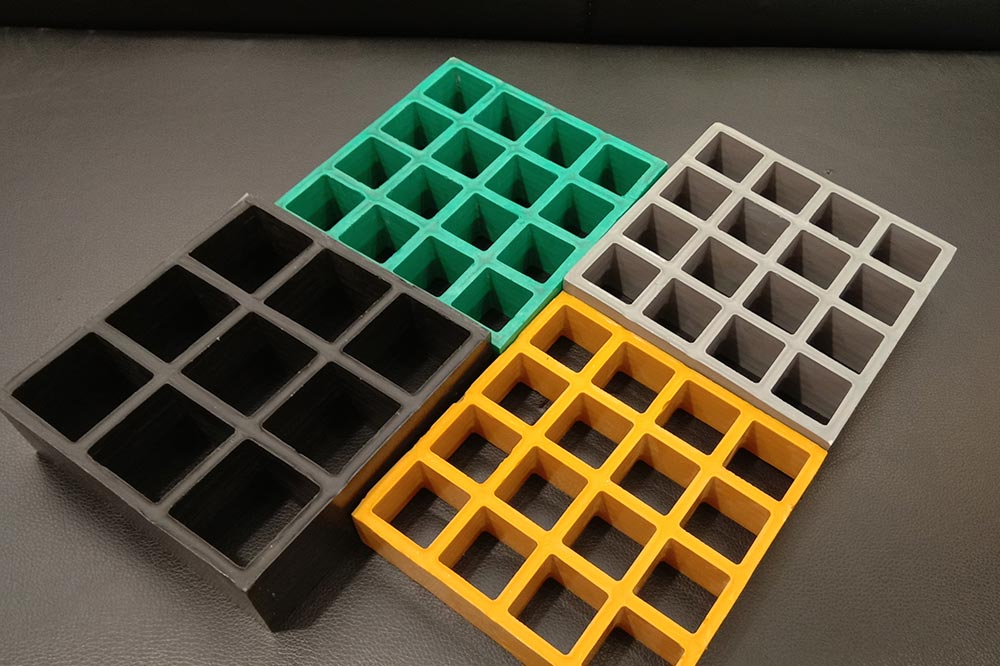

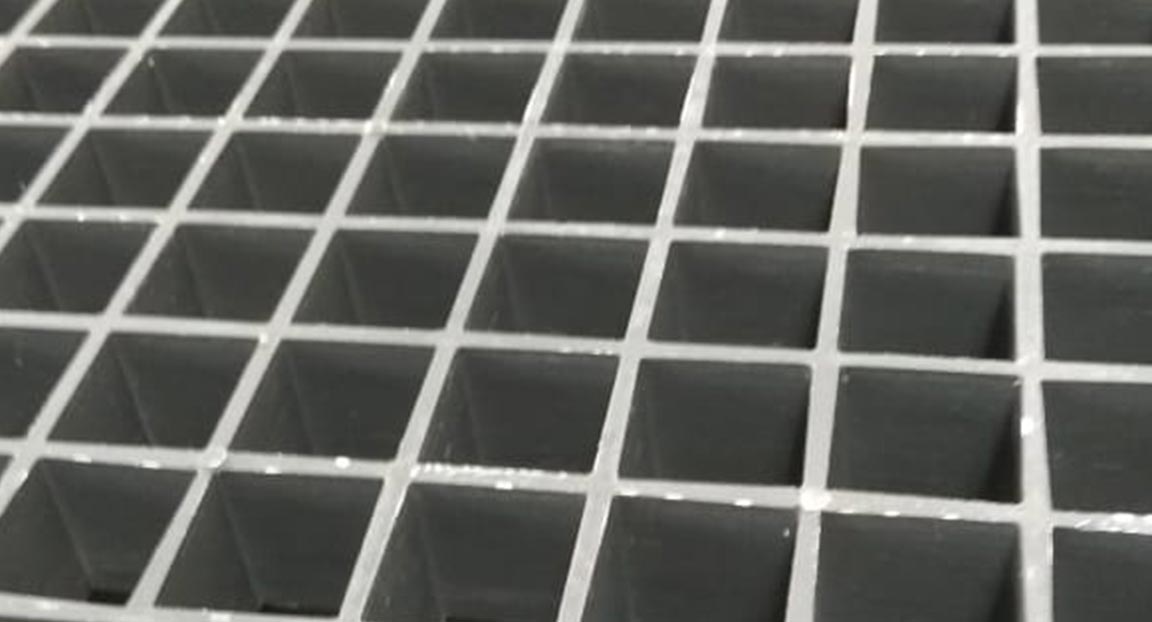

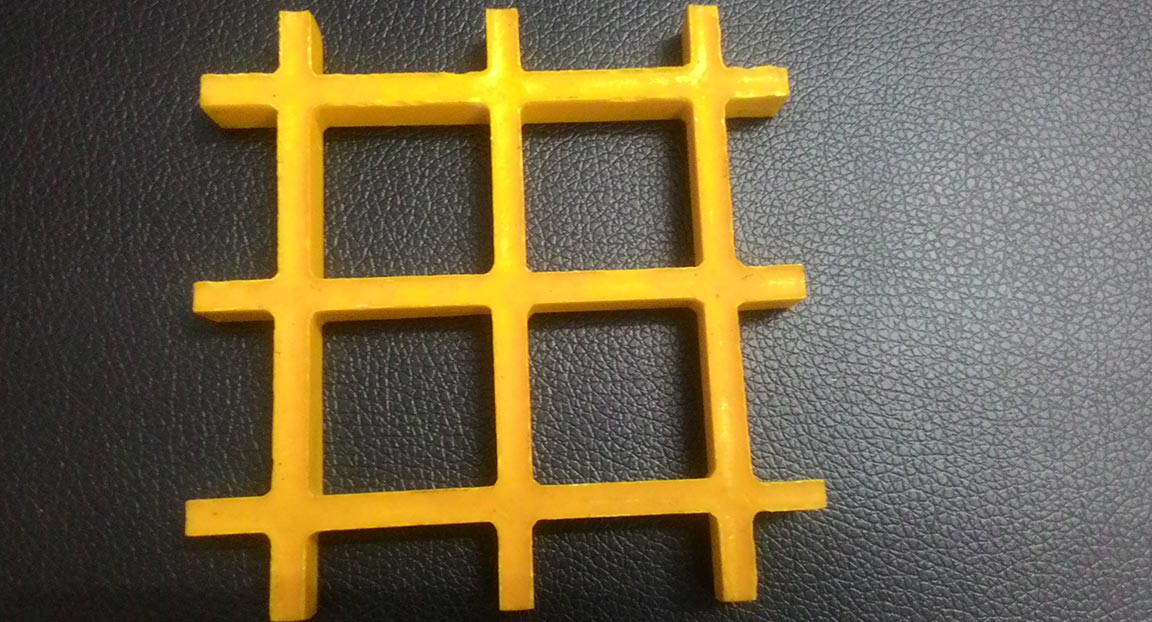

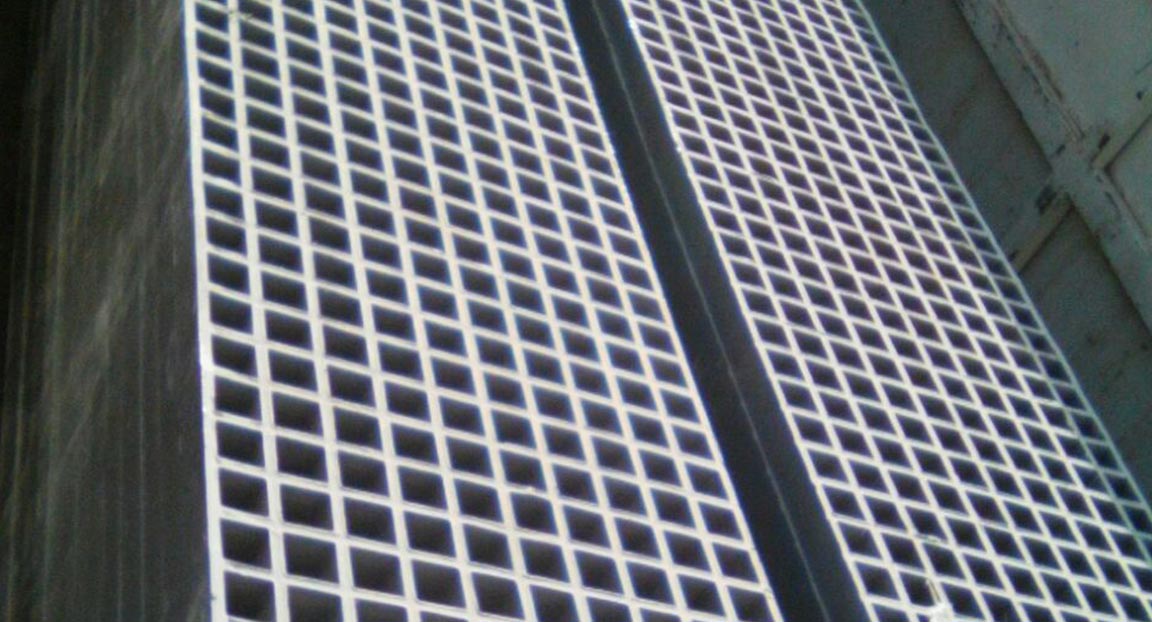

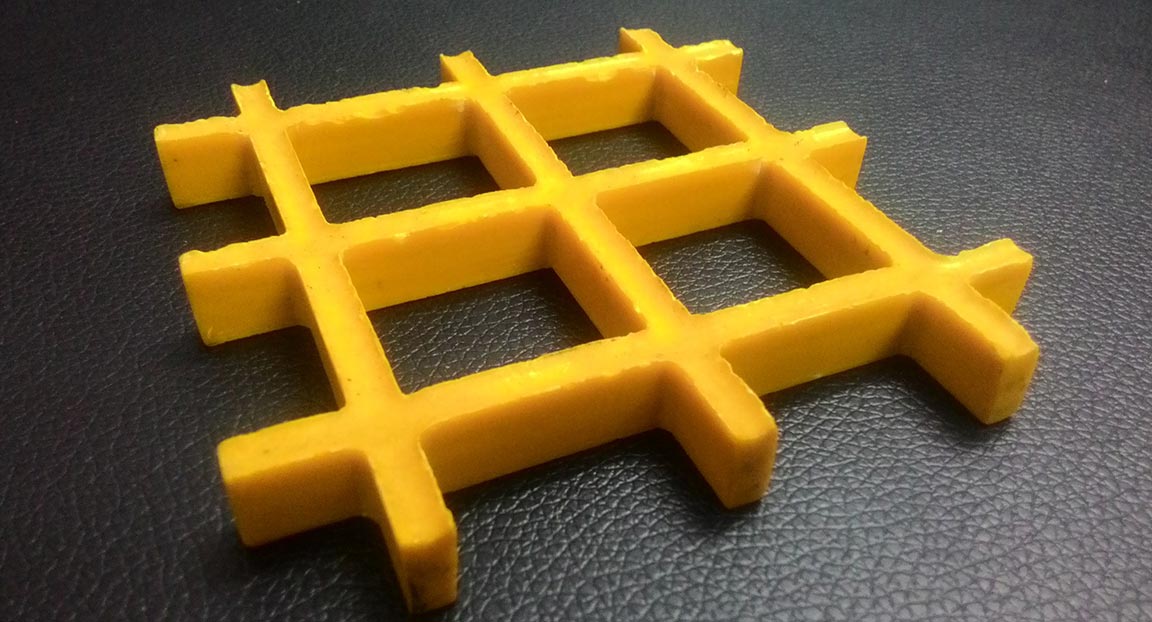

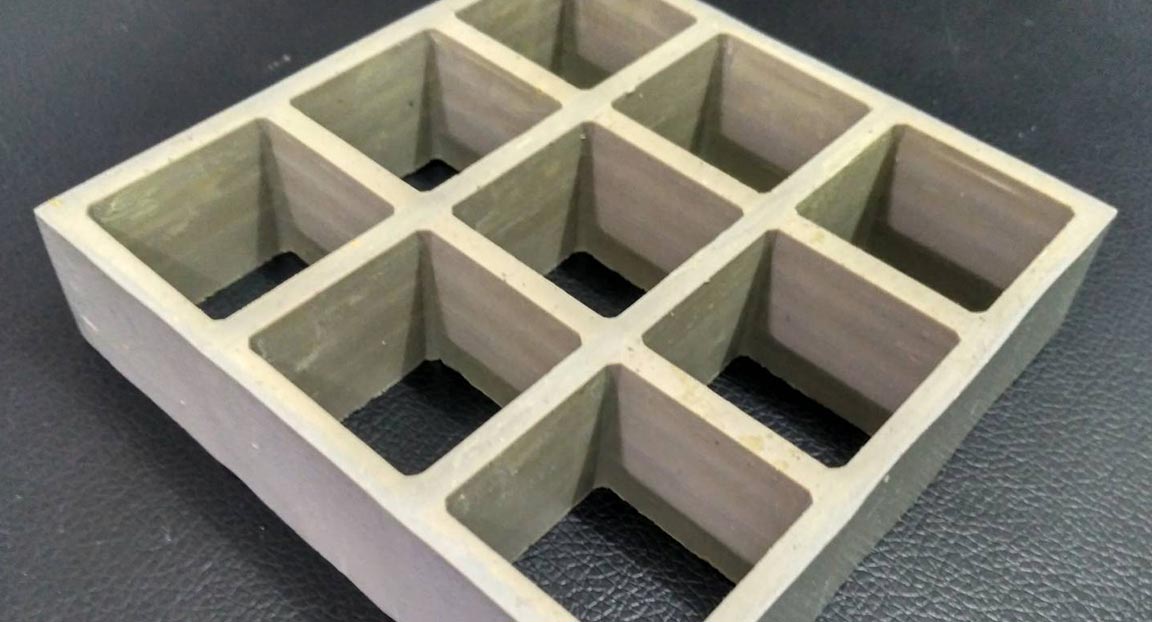

FRP Molded Grating

Fiberglass roving (approximately 35%) and liquid resin are laid thoroughly in the mould layer by layer to achieve desired thickness and panel size. After that, mould is set to cure at the required temperature, panel is then removed from mould. Since FRP Molded Grating has square mesh pattern, it offers substantial load capacity of bi-directional strength.



Sizes

Model No. Height (mm) Mesh (mm) Thickness (up-down) Open Area (%) Available Panel Size (mm)
AMSM 12X (50 X 50) 12 50x50 6-5 mm 82% 1007x4010
AMRM 25X(25X100) 25 25x100 6-5 mm 68% 1220x3660
AMSM 25X(38 X 38) 25 38x38 7-5 mm 68% 1220x3660
AMSM 25X(40 X 40) 25 40x40 6-5 mm 68% 1007x4127
AMSM 30X(38 X 38) 30 38x38 7-5 mm 68% 1220x3660
AMSM 30X(40 X 40) 30 40x40 7-5 mm 68% 1007x4127
AMMM 38X(19 X 19) 38 19X19(38X38) 7-5 mm 40% 1220x4000
AMSM 38X(38 X 38) 38 38x38 7-5 mm 68% 1220x3660
AMSM 38X(40 X 40) 38 40x40 7-5 mm 68% 1007x4127
AMSM 50X(50 X 50) 50 50x50 8-5 mm 71% 1225x4070
AMSM 45X(30 X 30) 45 30x30 7-9mm 62% 1027X2047

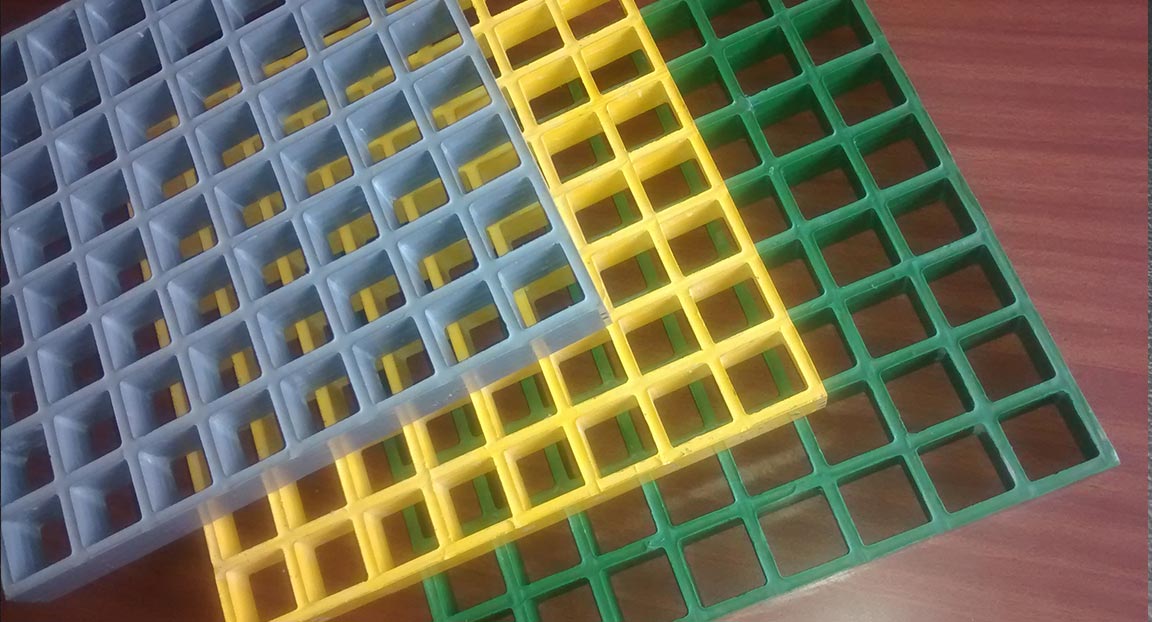

Colours:

Grey & Yellow. Custom colours available upon request.

FRP Pultruded Grating

AMROCK offers FRP Pultruded Grating which provides high strength in the harshest environment. It is fabricated from bearing bars, interlocking rods, and groove bars adhering to the highest international standards. Pultruded I-Bars are used as bearing bar which gives strength in the longitudinal direction. Pultruded Grating is used where the mechanical load is very high or support distances are very wide.

Sizes

Model No. Height (mm) Top Width C/C Spacing (mm) Clear Gap (mm) Open Area (%)
AMI 1040 25 15 25 10 40
AMI 1050 25 15 30 15 50
AMI 1060 25 15 38 23 60
AMI 1070 25 15 50 35 70
AMI 1080 25 15 75 60 80
AMI 1540 38 15 25 10 40
AMI 1550 38 15 30 15 50
AMI 1560 38 15 38 23 60
AMI 1570 38 15 50 35 70
AIMI 1580 38 15 75 60 80

Colours:

Grey & Yellow. Custom colours available upon request.
