FRP Manhole Covers

FRP Manhole Covers

It has always been our constant endeavor to improve the quality of our products and to bring in new technologies and new products to meet the changing needs of the market under single roof. Keeping in mind the above facts, we have added Fiberglass Manhole covers and Storm Water Gratings into our kitty.

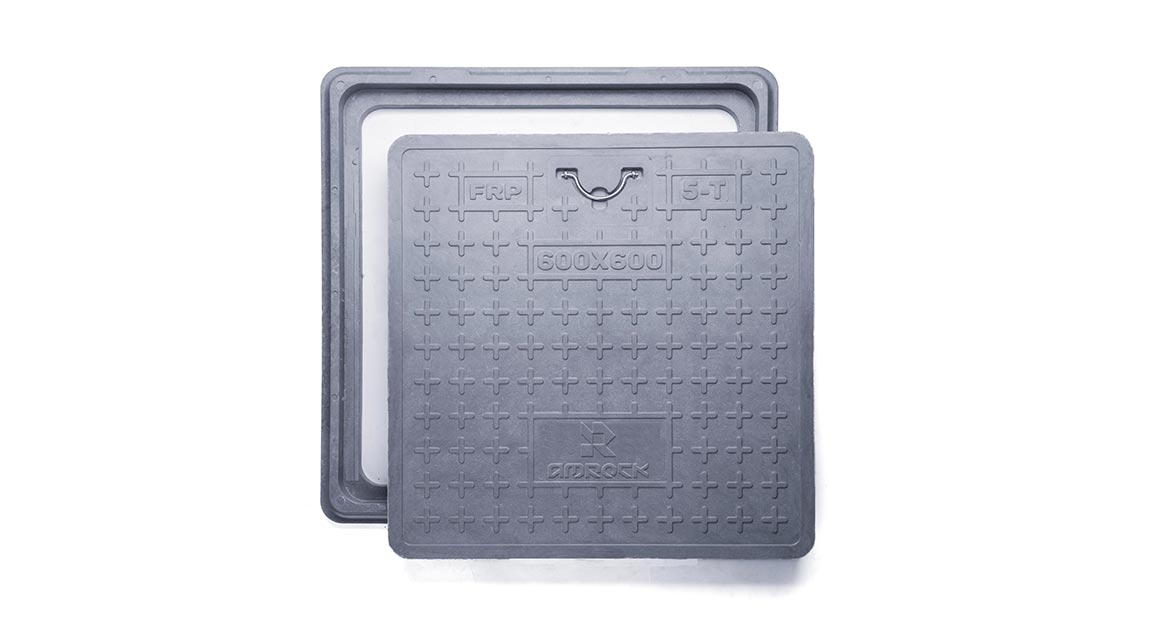

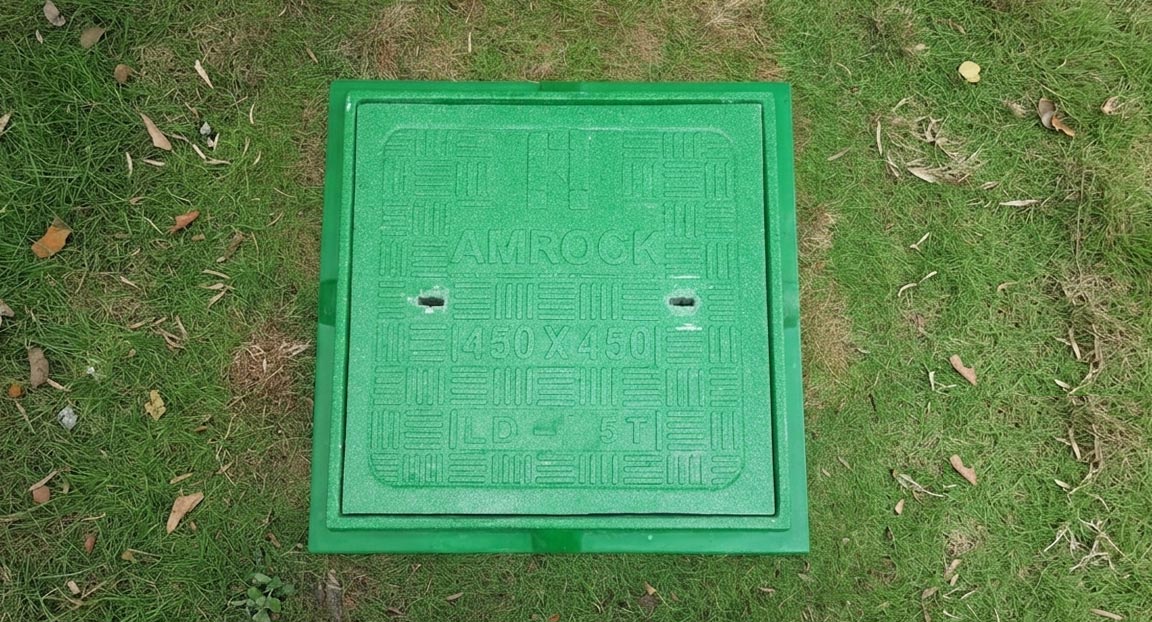

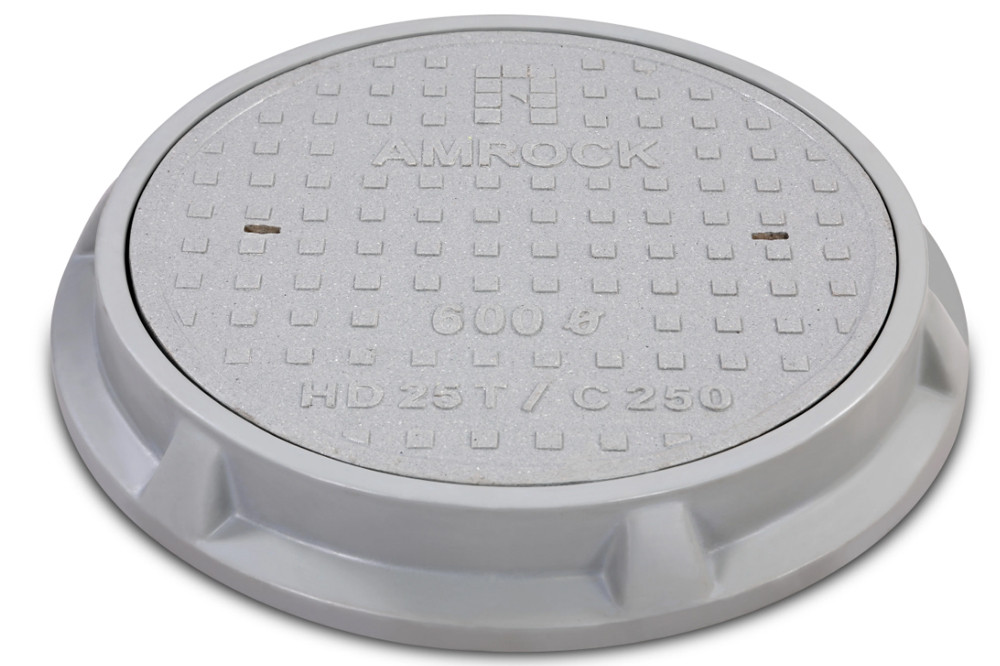

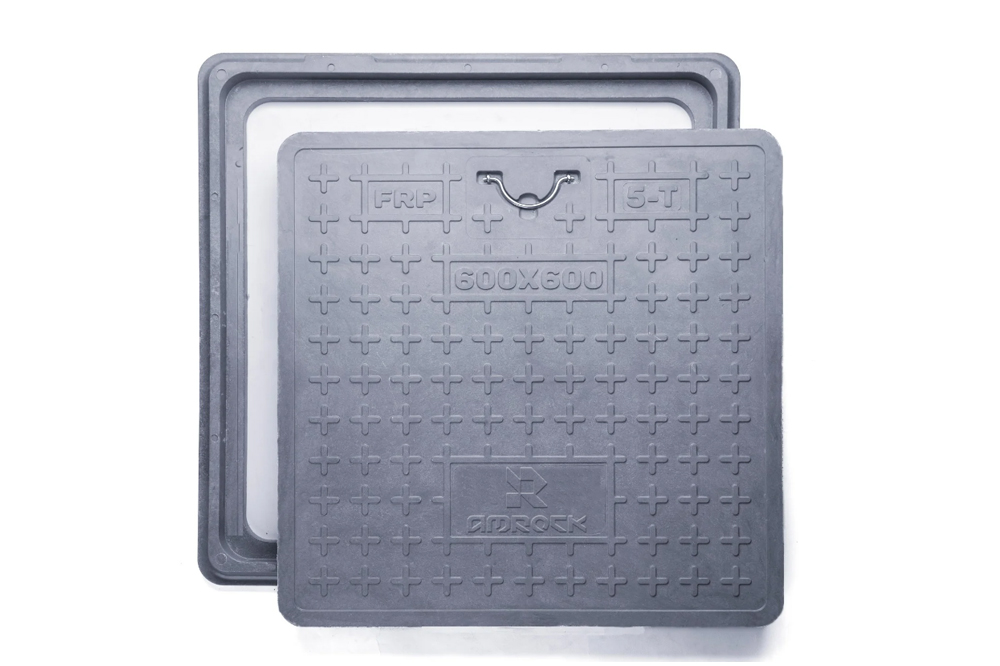

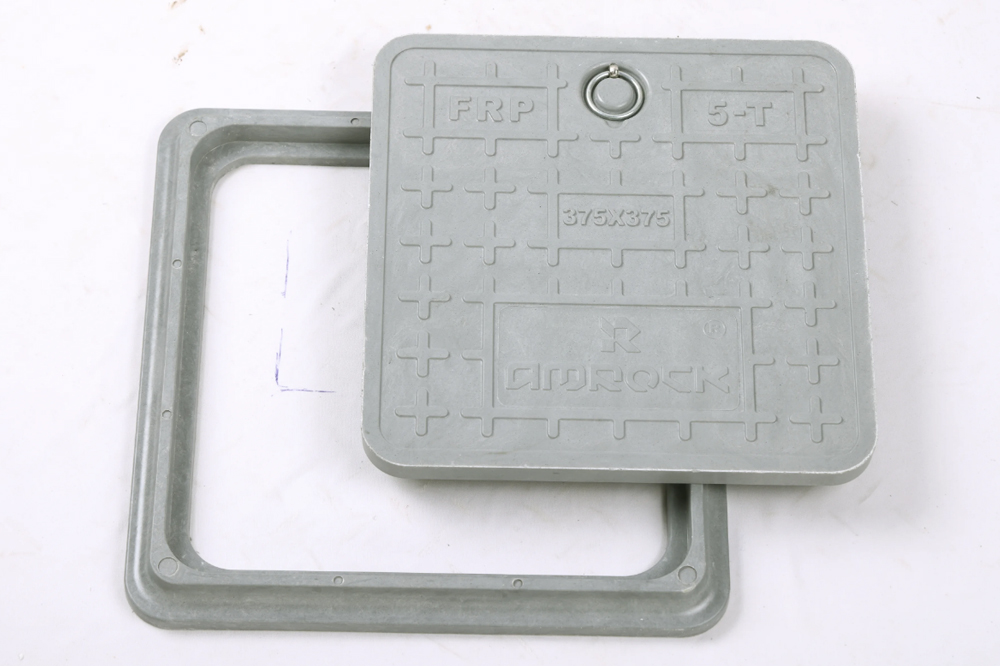

Our high quality FRP Manhole covers & Frames are available in all standard sizes with load bearing capacities from 1.5 Ton to 40 Ton. Which are available in circular, square and rectangular shapes.

Applications

  • Underground Sewerage and Storm Water Drainage Projects developed by Housing sector, Govt. and semi Govt. Depts., Municipal Corporations.
  • Trench Covers in various applications
  • Housing Industry, Malls, Multiplexes
  • City Roads and Footpaths
  • Telecommunications
  • Highways and Ports
  • Railways
  • Defense
  • Airports
  • Water, Gas and Petroleum installations
  • Beautification of Landscapes

Advantages

  • Waterproof, Weatherproof, Non corrosive, Theft poof
  • High Strength : Weight Ratio
  • Light Weight - Ease of handling
  • Temperature Resistance from - 40 degrees to +80 Degrees
  • Durable - Life span of 30 + years
  • Decorative surface designs and color variations available
  • Designs conforming to IS:1726 – 1991 & BSEN – 124

Load Capacity & uses

Grades as per IS:1726 standards Grades as per BSEN- 124 standards
Light Duty (LD 2.5) - 2.5 Ton Light Duty (A15) - 1.5 Ton
Medium Duty (MD 10) - 10 Ton Medium Duty (B125) - 12.5 Ton
High Duty (HD 20) - 20 Ton High Duty (C250) - 25 Ton
Extra Heavy Duty (EHD 35) - 35 Ton Extra Heavy Duty (D400) - 40 Ton
  • Light Duty Manhole Covers & Frames (LD 2.5/A15) : Used at pedestrian ways, cycle tracks, footways, car parking, residential complexes, institutions and places where light vehicular traffic is observed.
  • Medium Duty Manhole Covers & Frames (MD 10/B125) : Used at roads, service lanes and places where medium vehicular traffic is observed.
  • Heavy Duty Manhole Covers & Frames (HD 20/C250) : Used at roads, commercial areas, bus terminals and places where heavy vehicular traffic is observed.
  • Extra Heavy Duty Manhole Covers & Frames (EHD 35/D400) : Used at commercial areas, industrial areas, warehouses and places where heavy vehicular traffic is observed with heavy trucks and trailers.

Sizes Available

FRP MANHOLE COVERS & FRAMES
SHAPE CLEAR OPENING Load Capacity
Light Duty Light Duty Med Duty Heavy Duty Extra H Duty
CIRCULAR 900 MM DIA 2.5 T 5T 10T 20 T D 400 (40 T)
CIRCULAR 750 MM DIA 2.5 T 5T 10T 20 T D 400 (40 T)

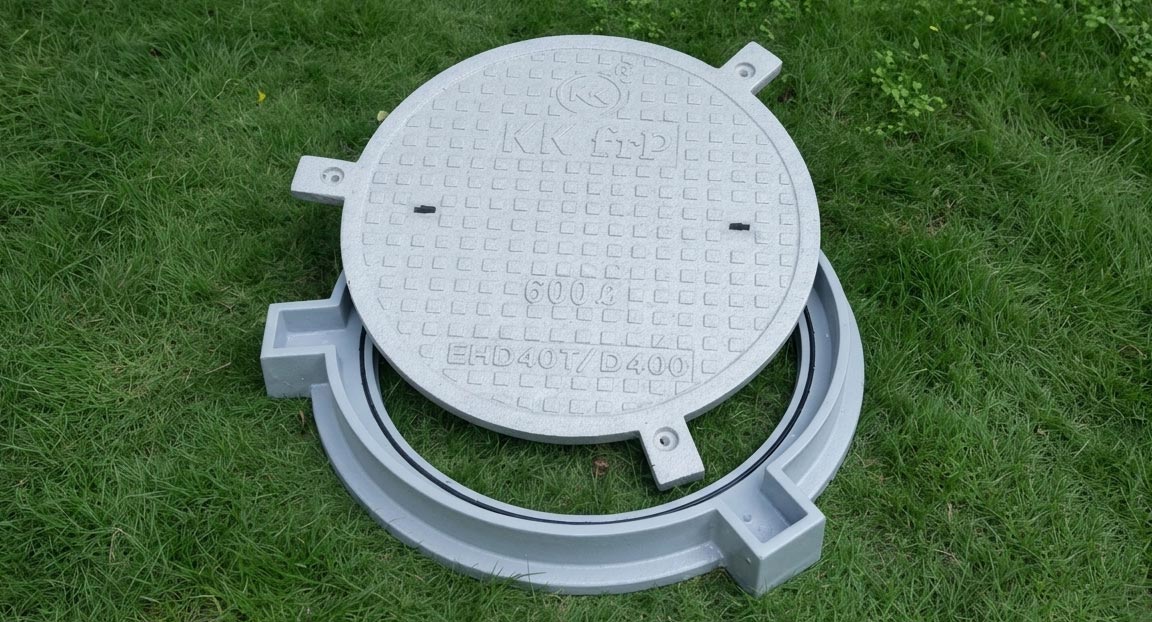

CIRCULAR 600 MM DIA 2.5 T 5T 10T 20 T D 400 (40 T)
CIRCULAR 560 MM DIA 2.5 T 5T 10T 20 T D 400 (40 T)
RECTANGULAR 225 X 300 MM 2.5 T x x x x
SQUARE 300 X 300 MM 2.5 T 5T 10T 20 T x

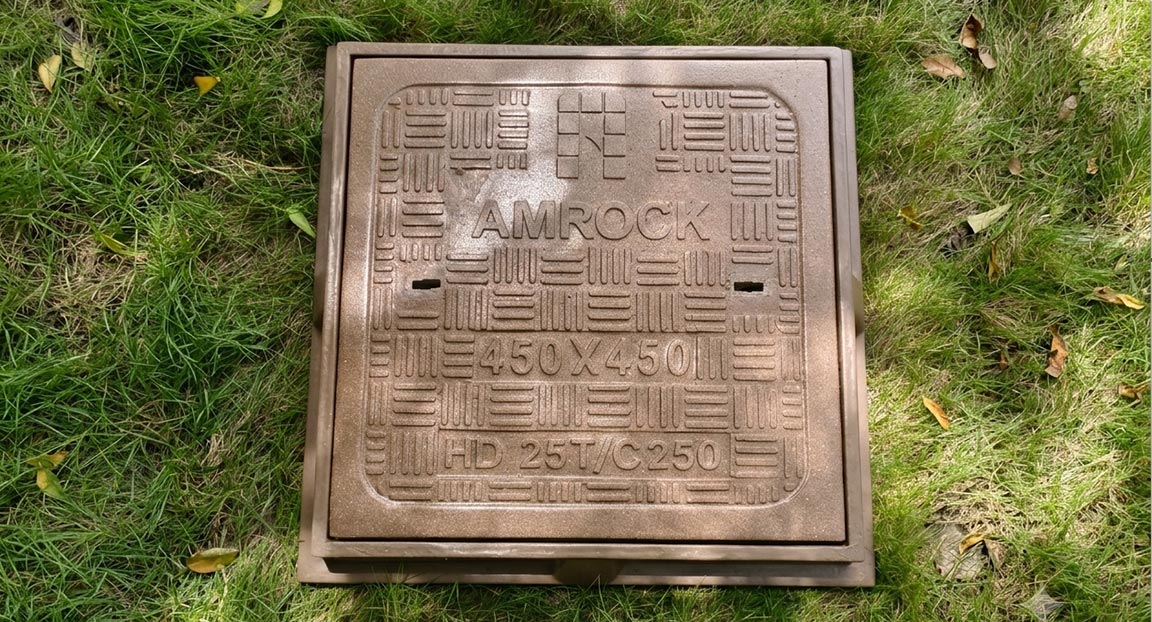

SQUARE 450 X 450 MM 2.5 T 5T 10T 20 T D 400 (40 T)
RECTANGULAR 600 X 450 MM 2.5 T 5T 10T 20 T D 400 (40 T)

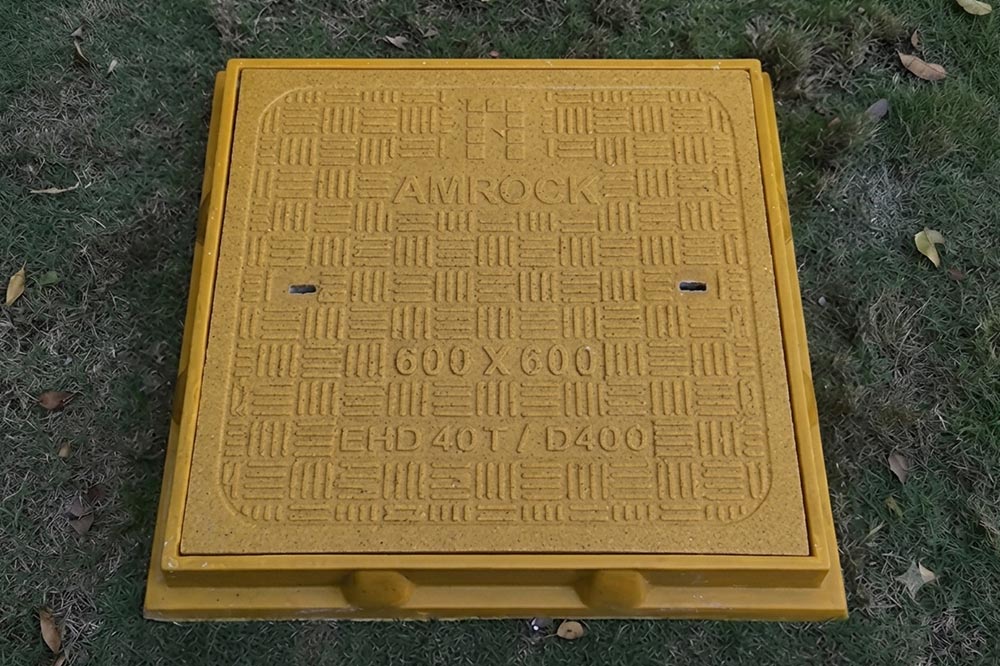

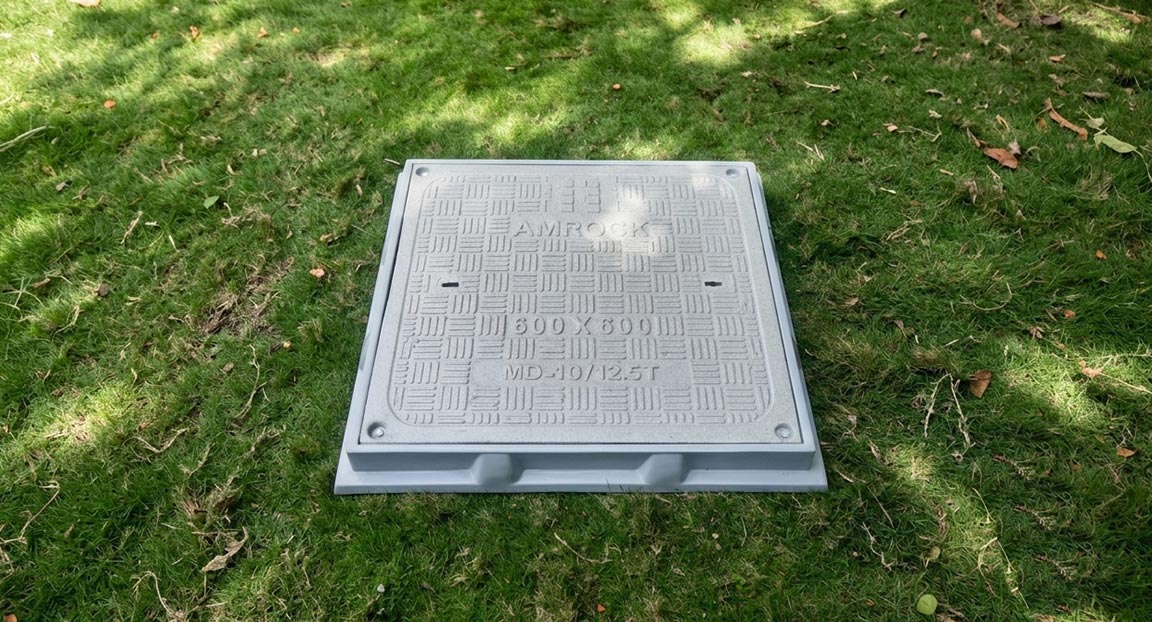

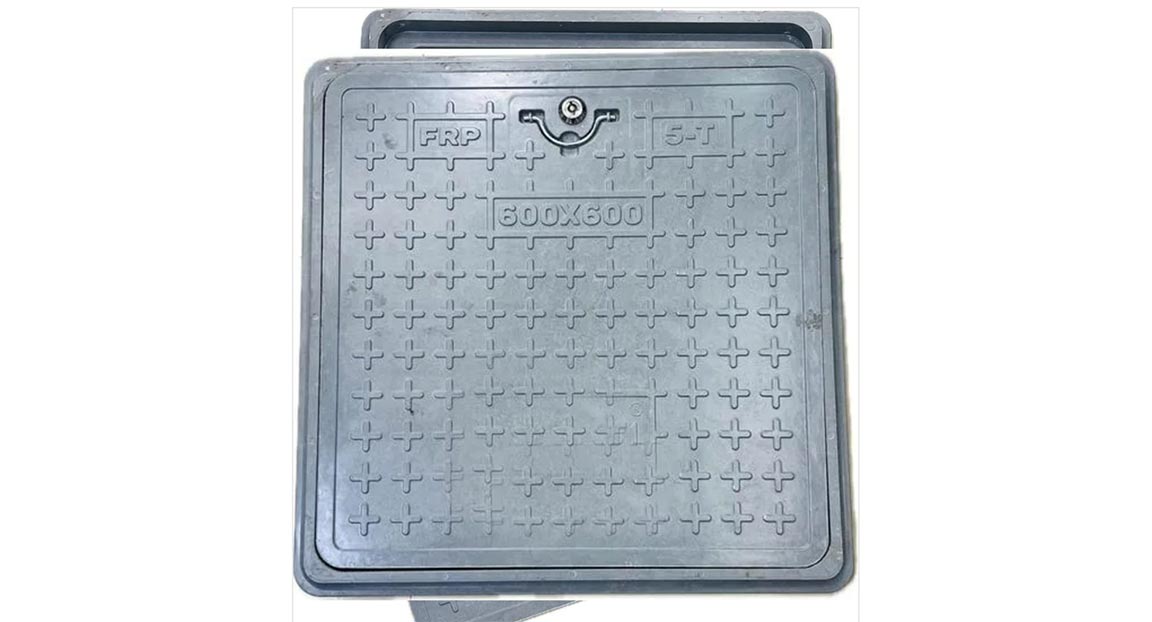

SQUARE 600 X 600 MM 2.5 T 5T 10T 20 T D 400 (40 T)
RECTANGULAR 900 X 450 MM 2.5 T 5T 10T 20 T D 400 (40 T)
RECTANGULAR 900 X 600 MM 2.5 T 5T 10T 20 T D 400 (40 T)
SQUARE 750 x 750 MM 2.5 T 5T 10T 20 T D 400 (40 T)
SQUARE 900 X 900 MM 2.5 T 5T 10T 20 T D 400 (40 T)
RECTANGULAR 900 X 1200 MM 2.5 T x 10T 20 T D 400 (40 T)

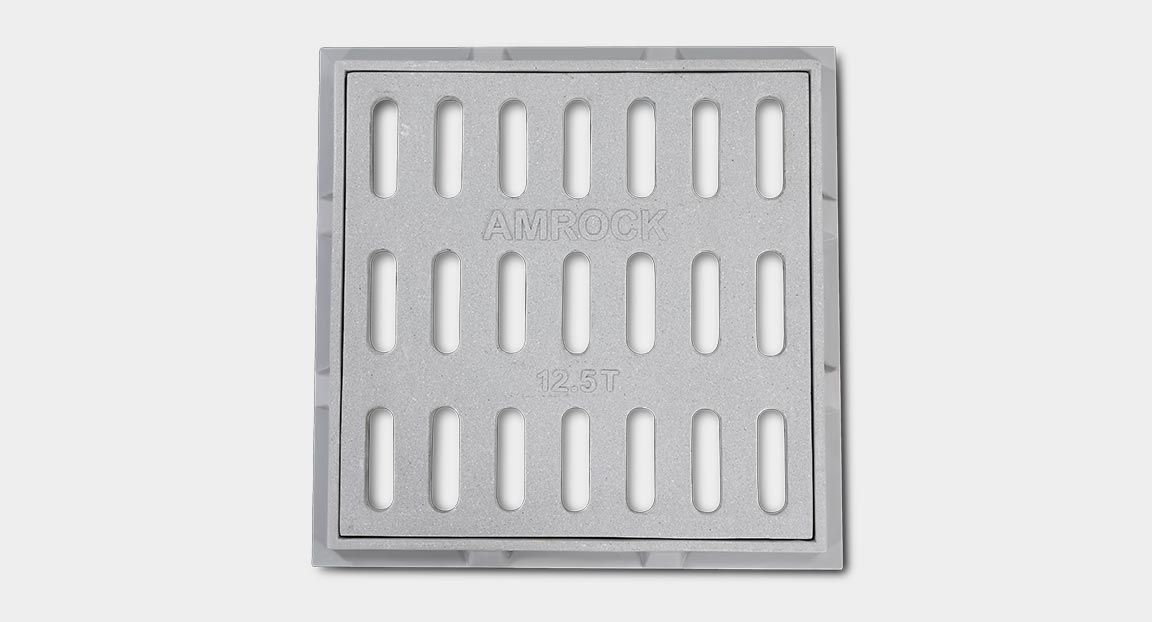

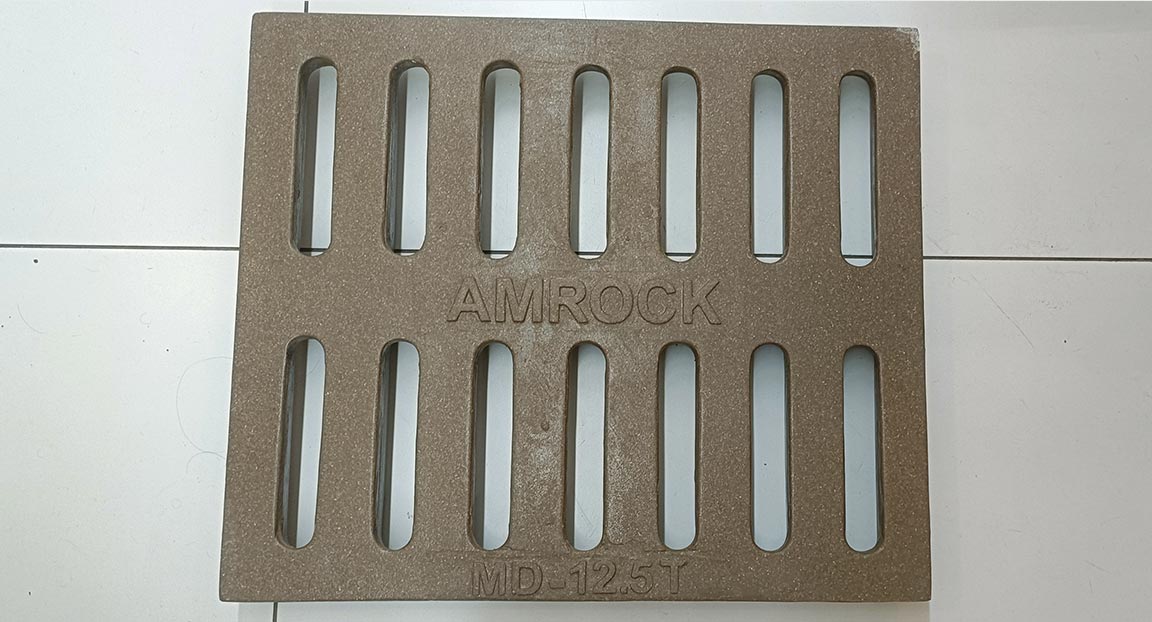

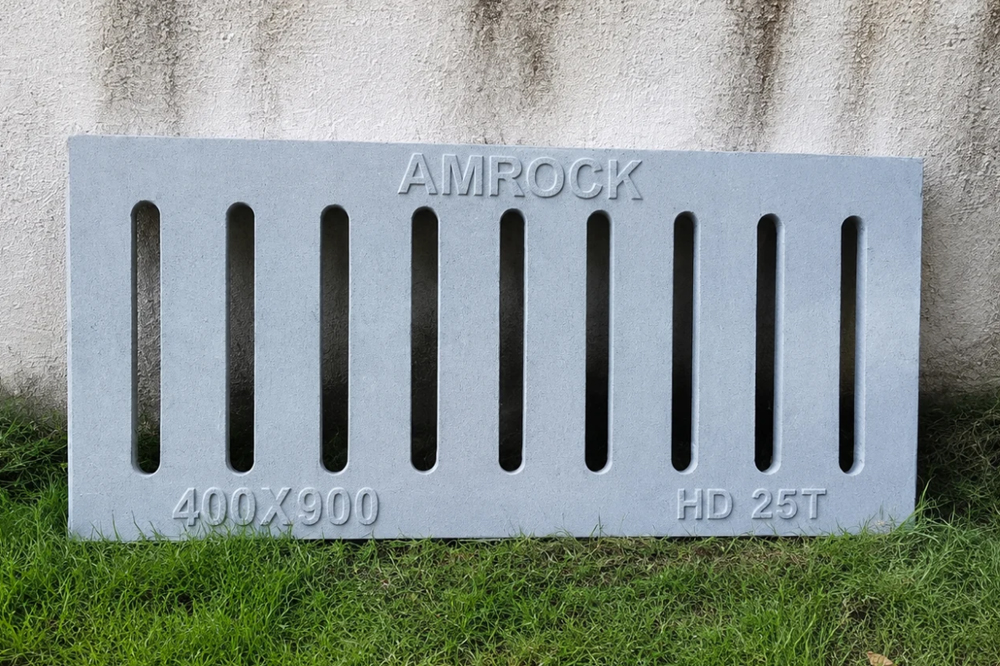

Our FRP Storm Water Grating Covers & Frames are available in standard sizes and shapes to suit the appropriate standard of drainage requirements.

FRP Storm Water Grating Covers & Frames are suitable to footways, residential areas, swimming pool and car parking and areas with heavy-duty traffic. Our Gratings are wear-resistant and climate-resistant and can be used long-term under different environmental conditions.

Sizes Available

FRP STORM WATER GRATING COVERS & FRAMES
SHAPE CLEAR OPENING Load Capacity
Light Duty Light Duty  Med Duty Heavy Duty Extra H Duty
RECTANGULAR 225X 300 MM 2.5 T x x x x
SQUARE 300X 300 MM 2.5 T x x x x
SQUARE 450X 450 MM 2.5 T 5T 10T 20 T x
RECTANGULAR 600X 450 MM 2.5 T 5T 10T 20 T x
SQUARE 600X 600 MM 2.5 T 5T 10T 20 T x
RECTANGULAR 900X 450 MM 2.5 T 5T 10T 20 T x
RECTANGULAR 900X 600 MM 2.5 T 5T 10T 20 T x
SQUARE 900 X 900 MM 2.5 T x 10T 20 T X

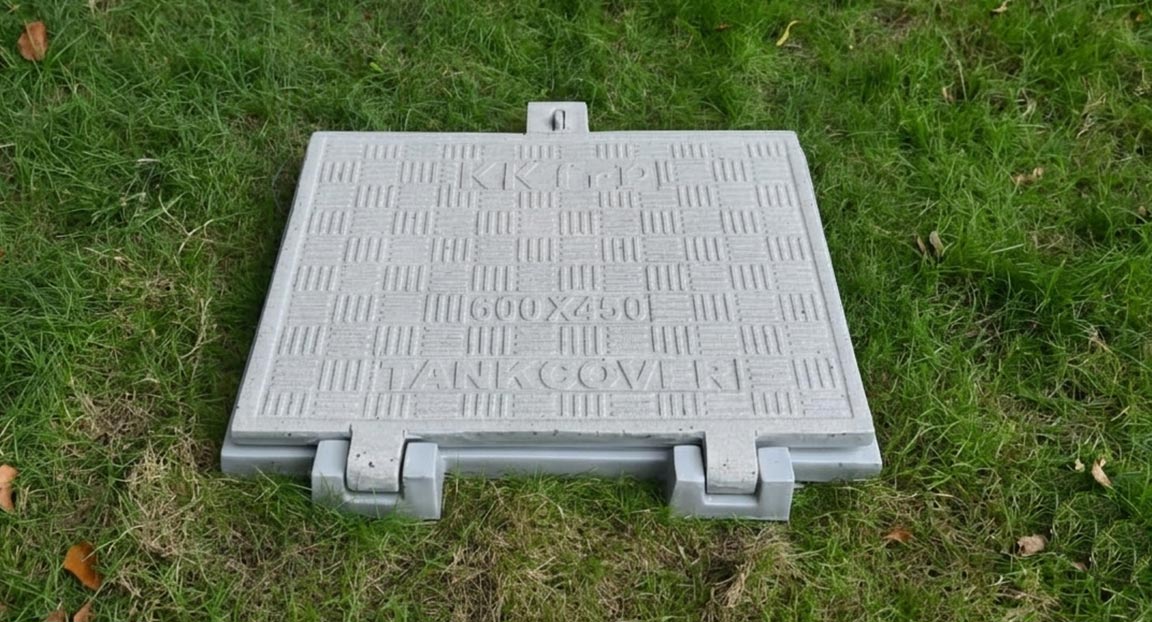

Tank covers manufactured in FRP can offer an excellent long term and durable solution to the traditional steel system. Being superior to conventional material in terms of overall life and light weight properties, our FRP Tank Covers are gaining very good response from users. These tank covers are constructed with high-strength FRP components, corrosion resistant and designed for quick installation by local contractors.

Features

  • Designed for Overhead & Underground Tanks
  • Light Weight
  • Maintenance Free
  • High Structural Strength
  • Locking arrangements available
  • Available in Square and Circular shapes

Sizes Available

TANK COVERS & FRAMES
SHAPE CLEAR OPENING Load Capacity
Light Duty Med Duty Heavy Duty
SQUARE
(OVERHEAD TANK COVER)
600 x 600 MM 1T x x
  • Prepare the concrete bed after considering the height of the frame.
  • The frame should be completely embedded in a minimum of M-20 Grade Concrete.
  • The level of the concrete bed must be flat so that entire frame is uniformly supported.
  • Frame should be levelled using a spirit leveller and confirming that the air bubble in leveller remains exactly at the centre (Zero – Zero Level)
  • Frame should be allowed to set in concrete for a minimum time of 7 days before its use.

Precautions before / During Installation

  • Standard covers are designed for installation on flat road / foot path surface; kindly ensure the same before installation.
  • Ensure that the top level of the frame is aligned to the level of the road.
  • Ensure that the frame is completely resting in concrete on all sides/edges.
  • Ensure that the frame is allowed sufficient time for setting in concrete before usage.
  • Ensure that the frame or cover is not dropped / exposed to impact prior to and after installation.
  • Ensure that the cover is placed upright on the frame.
